Product Description

S40 WING SYSTEM WITH S40 SPORTS HARNESS


The S40 wing system has been designed to give total flexibility to divers wishing to adapt their kit configuration for different diving set ups.


Custom Divers is well-known for its quality product range which meets the needs of all levels of diving - from entry-level to advanced. The Custom Diver S40 wing system is perfect to take divers on their journey from single and twin-set through to rebreather diving. The S40 system package also includes one single cylinder adaptor and two cylinder cam belts.

The S40 is a single bladder system housed in a durable but flexible 1100 Cordura fabric envelope with a 40lbs lift capability. This wing has four hose routing slots to allow hoses/gauges to be run on the inside of the wing, it also has many hose retaining tabs stitched to the envelope for stowing away hoses/accessories.



With a choice of a stainless steel or aluminium back plates, the total system including wing, harness and a choice of stainless steel or aluminium back plates, weighs 4.6Kg - 2.60Kg respectively.


S40 Plates H400 x W265 mm
CDWABPDB - Dog Bone Shape (aluminium) 0.40 Kgs 0.88 Lbs
CDWABP40 - Standard (aluminium) 0.80 Kgs 1.76 Lbs
CDWS40BP - Standard (stainless steel) 2.40 kgs 5.29 lbs


The S40 wing with sports harness system is fitted with a six-part harness which is fully adjustable to fit all sizes. The harness has two shoulder break points and is easily re-sized by adjusting through the stainless steel D rings on each side. The harness is also dressed with shoulder pads for comfort and all accessories are easy to move to meet individual diving needs. All systems are delivered fully assembled and complete with two 45deg D-rings, chest strap, 50mm crotch/scooter D-ring, which are again all fully adjustable.


Features

* Stainless steel or Aluminium back plate.
* System (with s/steel back plate)weighs 4.6kgs.
* System (with standard aluminium back plate)weighs 3kgs.
* System (with dog bone aluminiuml back plate)weighs 2.6kgs.

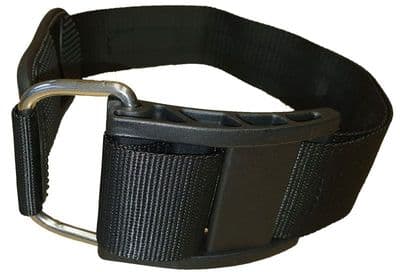

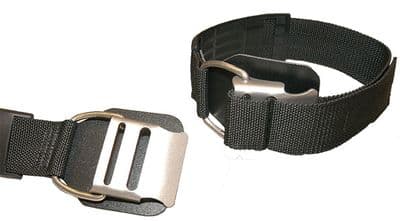

* One single cylinder adaptor and two cylinder cam belts.
* 40lbs buoyancy capability.
*  Single Bladder system.
*  Hose routing slots.
*  Shoulder break points.

*  Crotch strap and scooter D-ring.
*  Low profile wing system.

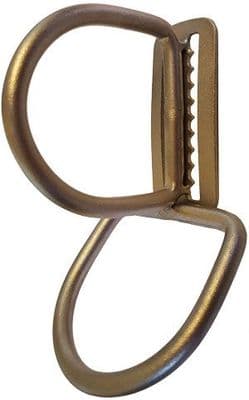

*  Adjustable s/steel 45 deg D-rings for accessory stowage.
*  Complete systems are supplied dressed with back plate, harness shoulder pads,
    two adjustable s/steel 45 deg D-rings  crotch strap and scooter D-ring

and two adjustable 45deg welded d-rings, One single cylinder adaptor and two cylinder cam belts.

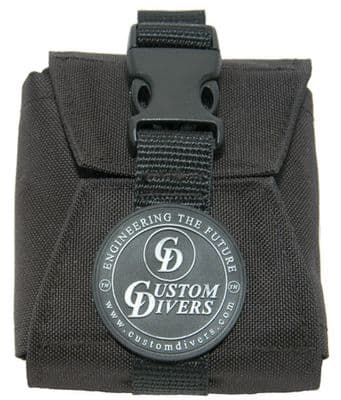

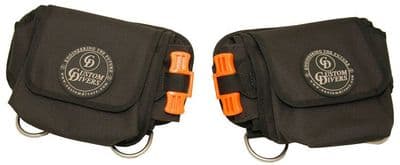

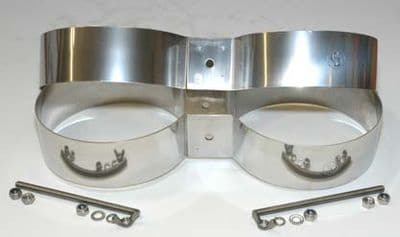

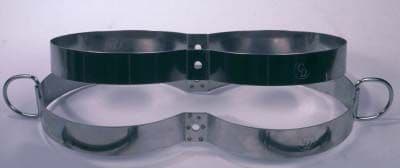

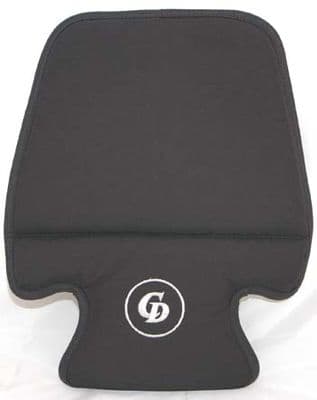

Optional accessories suitable for use with the S40, tank bands comfort back pads, pockets, weight pockets etc..


Specifications

Product Code
CDWS40S
Weight
4.6kg
