S40 WING SYSTEM WITH S40 MINI SPORTS HARNESS

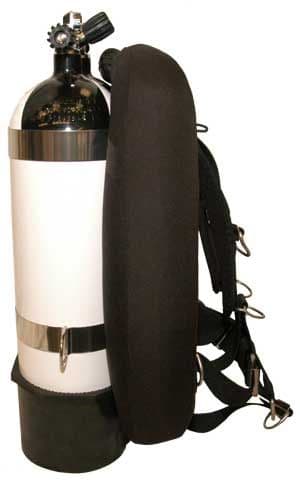

The S40 wing system has been designed to give total flexibility to divers wishing to adapt their kit configuration for different diving set ups.
Custom Divers is well-known for its quality product range which meets the needs of all levels of diving - from entry-level to advanced. The Custom Diver S40 wing system is perfect to take divers on their journey from single and twin-set through to rebreather diving. The S40 system package also includes one single cylinder adaptor and two cylinder cam belts.
The S40 is a single bladder system housed in a durable but flexible 1100 Cordura fabric envelope with a 40lbs lift capability. This wing has four hose routing slots to allow hoses/gauges to be run on the inside of the wing, it also has many hose retaining tabs stitched to the envelope for stowing away hoses/accessories.
With a choice of a stainless steel or aluminium back plates, the total system including wing, harness and a choice of stainless steel or aluminium back plates, weighs 4.6Kg - 2.60Kg respectively.
| S40 Plates |
H400 x W265 mm |
| CDWABPDB - Dog Bone Shape (aluminium) |
0.40 Kgs |
0.88 Lbs |
| CDWABP40 - Standard (aluminium) |
0.80 Kgs |
1.76 Lbs |
| CDWS40BP - Standard (stainless steel) |
2.40 kgs |
5.29 lbs |

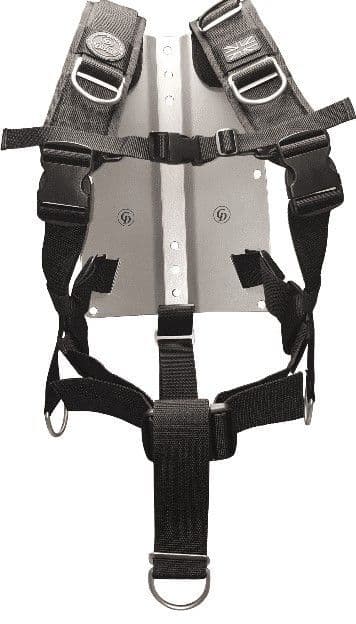

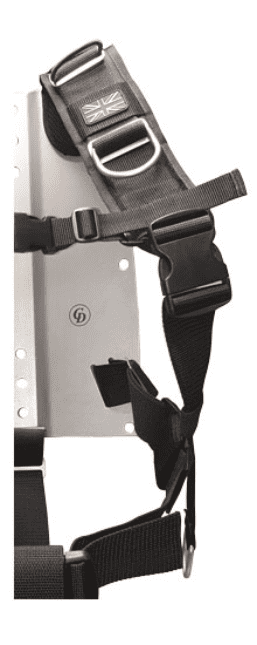

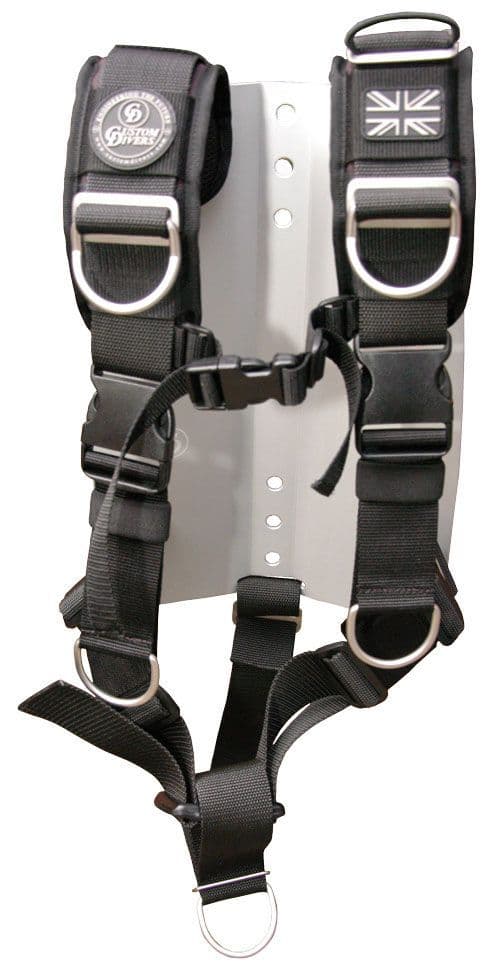

The Mini harness is designed for petite adult divers with adjustable proportions to fit smaller frames, the mini harness is also ideal to suit children from 7 upwards. .
It may be adapted to grow with you including consideration for torso length and shoulder width. This harness is fully adjustable and fits all Custom Divers wing systems and all makes of backplates. The shoulder clip configuration is designed to allow full adjustability for both shoulders, also featuring two break points. The Mini harness is equipped with four D-rings and a crotch strap made from two inch wide webbing preventing the rig slipping down towards the divers head if inverted and includes a accessories attachment d-ring.
Features
* Stainless steel or Aluminium back plate.
* System (with s/steel back plate)weighs 4.6kgs.
* System (with standard aluminium back plate)weighs 3kgs.
* System (with dog bone aluminiuml back plate)weighs 2.6kgs.
* One single cylinder adaptor and two cylinder cam belts.
* 40lbs buoyancy capability.
* Single Bladder system.
* Hose routing slots.
* Shoulder break points.
* Crotch strap and scooter D-ring.
* Low profile wing system.
* Adjustable s/steel 45 deg D-rings for accessory stowage.
* Complete systems are supplied dressed with back plate, harness shoulder pads,
two adjustable s/steel 45 deg D-rings crotch strap and scooter D-ring,
One single cylinder adaptor and two cylinder cam belts.
Optional accessories suitable for use with the S40, tank bands comfort back pads, pockets, weight pockets etc..
